The Squamish Prodelta
experiment is ultimately designed to test the
limits to which real seabed morphologic change can be detected using
integrated multibeam sonar systems. The experimental objectives are
The Ocean Mapping Group (OMG) at
UNB specializes in developing improved methods for survey, processing,
analysis and presentation of seabed mapping information, primarily
through the use of integrated multibeam sonar systems. To that end,
research topics in positioning, orientation, integration, refraction,
seabed backscatter and water column imaging are continually undertaken.
As part of these developments, the OMG undertake field mapping programs
to support these engineering research aims. Those programs provide an
opportunity to test out and improve these research developments. The
largest program is the CCGS Amundsen Arctic
Archipelago Seabed Mapping> Program. The most flexible program,
however, revolves arounds the operation of the CSL Heron with her
CFI-funded suite of positioning and acoustic sensors. The Squamish
Prodelta Program utilizes the CSL Heron and is an opportunity to apply
research developments directly to questions about seabed sedimentary
- to detect and understand
the extent of, timing of, and mechanisms
involved in, seabed mass wasting on the prodelta
- to improve acoustic imaging methods to the point where such
processes can be observed adequately.

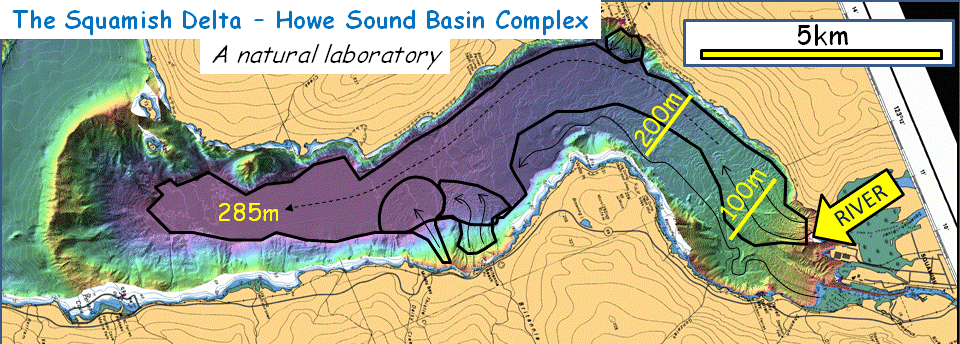

Upper Howe Sound
of Howe Sound north of
the Porteau Cove Sill. This sill is probably a terminal moraine and
separates the southern shallower section of Howe Sound from the deeper
northern section. Within this northern section, the fjord basin acts
like a natural laboratory for mass wasting studies, It is ~ 16 km long
and fed almost entirely by sediment input from the Squamish Delta.
Secondary sources of sediment have been input from the Britannia Beach
and Woodfibre locations, but volumetrically they are unimportant.
The southern section of this upper basin is almost flat at a depth of
about 285m, probably reflecting the ponding of distal turbidity
currents originating from the Squamish prodelta slope to the north. A
series of active and fossil prodelta channels are clearly visible in
the multibeam surveys of the region. The fossil channels predate
the installation of a training dyke in 1971. The active channels are
the main focus of this survey.
The Squamish Delta Location
Coast Mountain Range of
British Columbia and debouches at the head of Howe Sound. During the
summer freshet, a discharge of > 500m3/s is usually
maintained for a period of more than 4 months during which high
suspended sediment concentrations are present, and has resulted in the
development of a delta just west of the town of Squamish. Peak
discharge events of over 1000m3/s do occur within the
summer freshet. Notably however, even larger events (although of much
shorter duration) are common in the autumn due to local runoff.
A training dyke, installed in 1971 has concentrated the full Squamish
River discharge into a 500m section on the north west side of the
fjord. The purpose was in part to be able to create the Squamish Port
facility. Prior to the dyke, the main river flow actually ran through
the current port facility location and, prior to 1921, actually flowed
through what is now termed the Mamquam Blind Channel. Since
installation of the dyke, the delta top has prograded several hundred
metres to the south and now extends out partially cutting off the
entrance to the port. Howe Sound is a macrotidal fjord. The tidal range
varies from about 5m during Springs to 3m during Neaps.

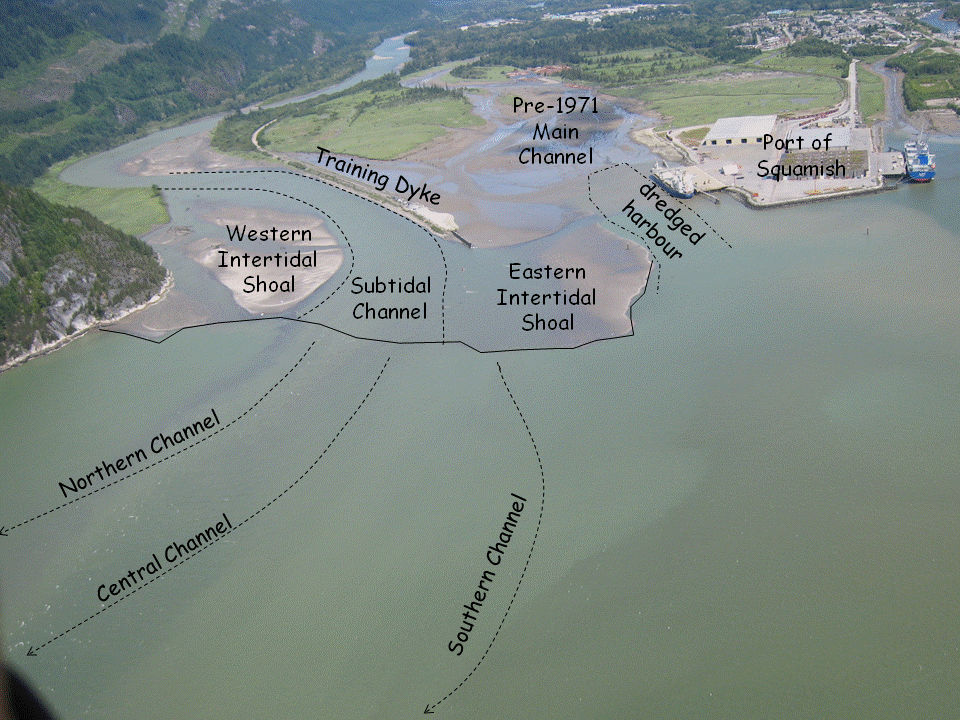

The delta top consists of two intertidal sand flats that are developed
on either side of the main subtidal river/estuary channel The river
channel is deepest immediately adjacent to the training dyke with a
depth of ~2-3m below chart datum. As the channel extends beyond
the training dyke it shoals and widen slightly as it approaches the
delta lip. At the lip, the channel is about 200m wide and less than a
metre below chart datum. During the winter-time low discharge period,
the salt water of Howe Sound penetrates up the river, forming a
seasonal estuary extending several kilometres upstream. During the
freshet, the salt water is effectively expelled from the river.

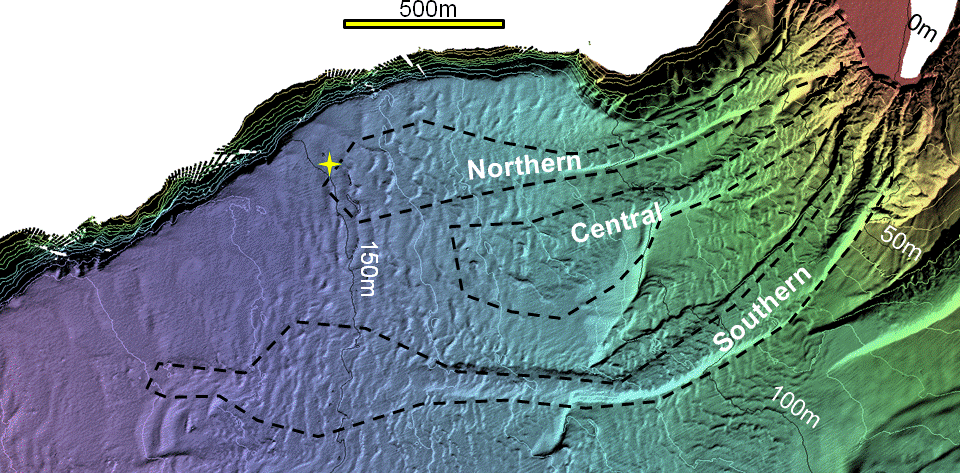

Morphology of the Prodelta Slope
the lip of the delta, the prodelta slope extends over 2000m and
drops down to more than 180m depth. Superimposed on that slope are
several prominent channels. Based on biannual, annual and semi-annual
multibeam surveys over the past 6 years, three major conduits are noted
to be currently active. They are herein termed the northern,
and southern channels. They have been the focus of the 2011 experiment
which involved daily resurveys of these three channels to look for
evidence of activity.
Southeast of the active delta is a pair of relict channels. The oldest
one extends from the mouth of the Mamquam Blind Channel and, although
predominantly buried, clearly used to have an incised meandering
character. The younger one drained from the location of the current
port facilty and was presumably the main active channel prior to 1971.
Since the dyke installation it is clear that it has been completely
abandoned and is being swamped by overbank sedimentation.

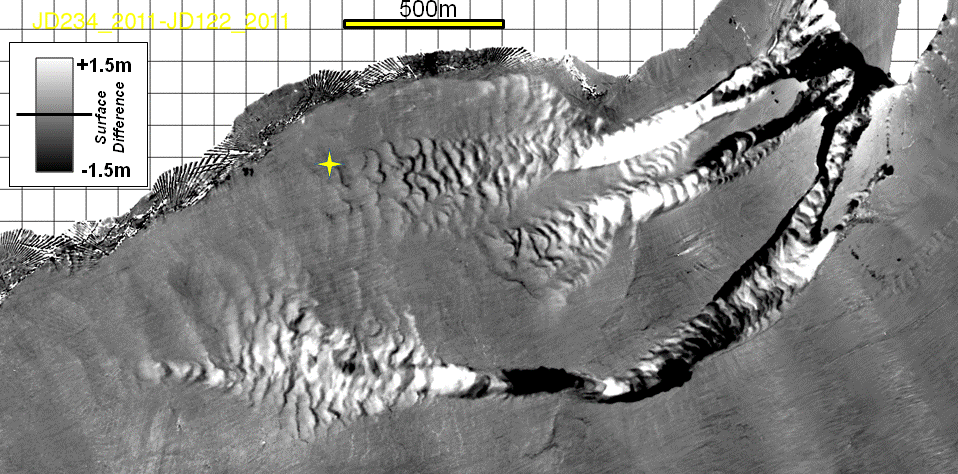

The net change in the prodelta morphology from April to August 2011 is
presented in the figure to the left. As can be seen the three main
channels were indeed the loci of activity. The yellow star indicates
the location of the bottom mounted ADCP (see discussion later), which
was installed to detect turbidity current events. As can be seen it was
right on the edge of the region of detectable change. The instrument
was in fact buried by one flow for a period 20 days.
Daily Seabed Change Detection
While the figure above illustrates the cummulative change over
the summer, there remains a question about the scale of individual mass
For that purpose, the resurvey
frequency was designed to establish change over a 1 or 3 day period

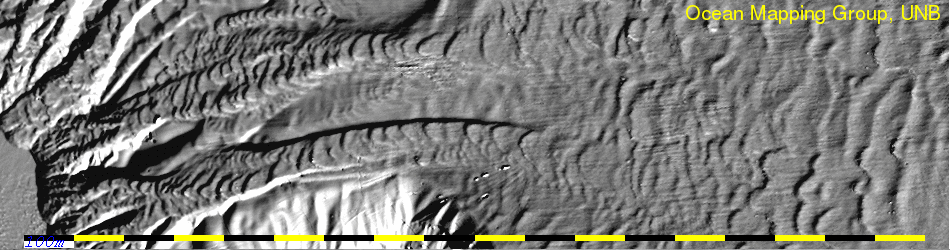

The animation to the right shows the seafloor the day before and
the day after one of the largest mass wasting events. As can be seen
there is a clear shift in the transverse bedforms patterns on the
channel floor. The difference map, highlights the location of the
The animation at the head of this report shows the daily evolution of
morphology of the lip of the delta and the prodelta slope immediately
below. As can be seen, the events were intermittent, with pauses of
several days between activity at times. During the peak activity
however, daily events were common with a clear net upslope migration of
those channel-transverse features. Also one can see the lip of the
delta active prograding as a result of rapid dumping of suspended
sediment as the flow decelerates off the lip of the delta. The apparent noise in the data is
largely sonar mistracking on the gas plumes that were strongly but
ephemerally developed on the prodelta slope.

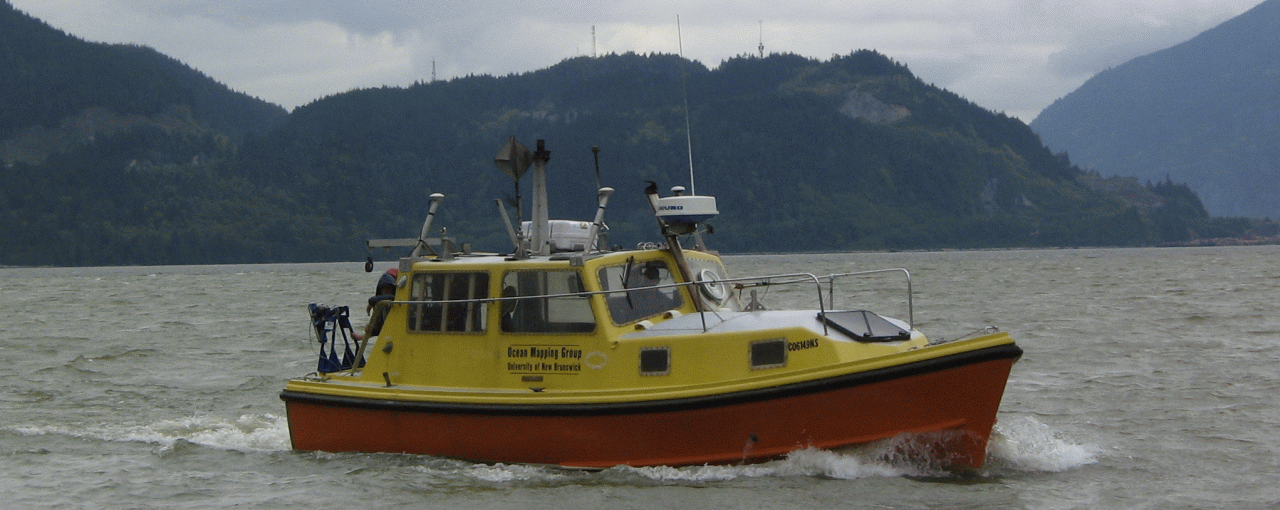

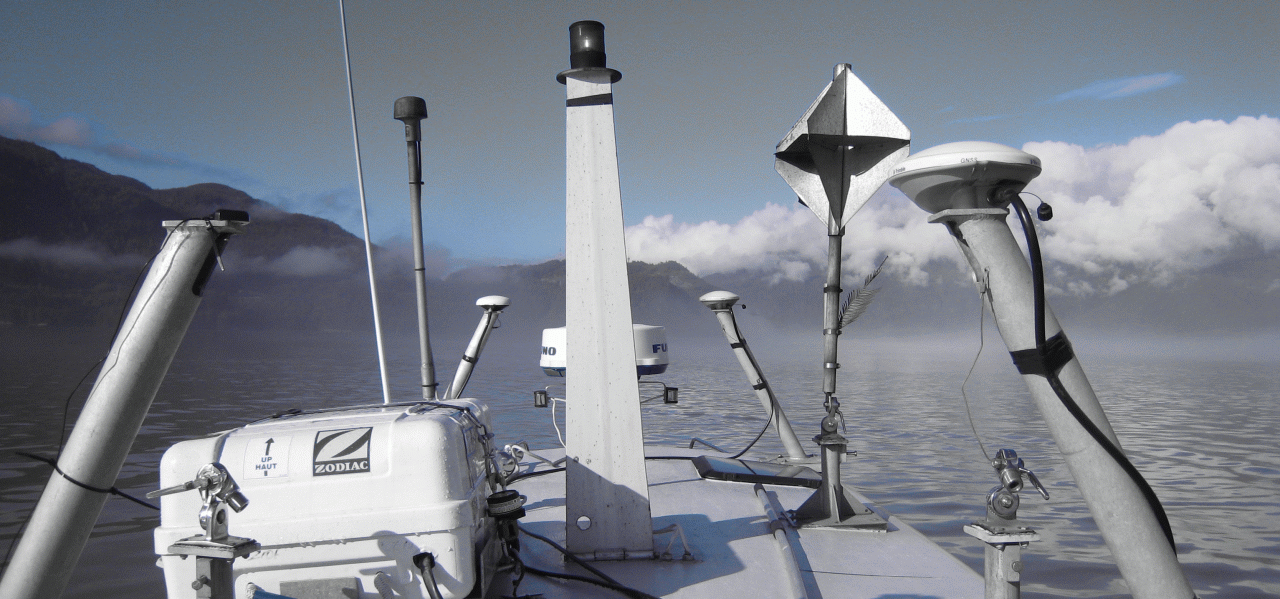

CSL Heron and her instrumentation
launch on loan to UNB from the Canadian
From 2002 until 2009 she operated with a suite of
instruments centred around a 300 kHz multibeam sonar (EM3002). During
that time she supported OMG research
objectives in New Brunswick
coastal waters and the Canadian Arctic Archipelago (deployed from CCGS

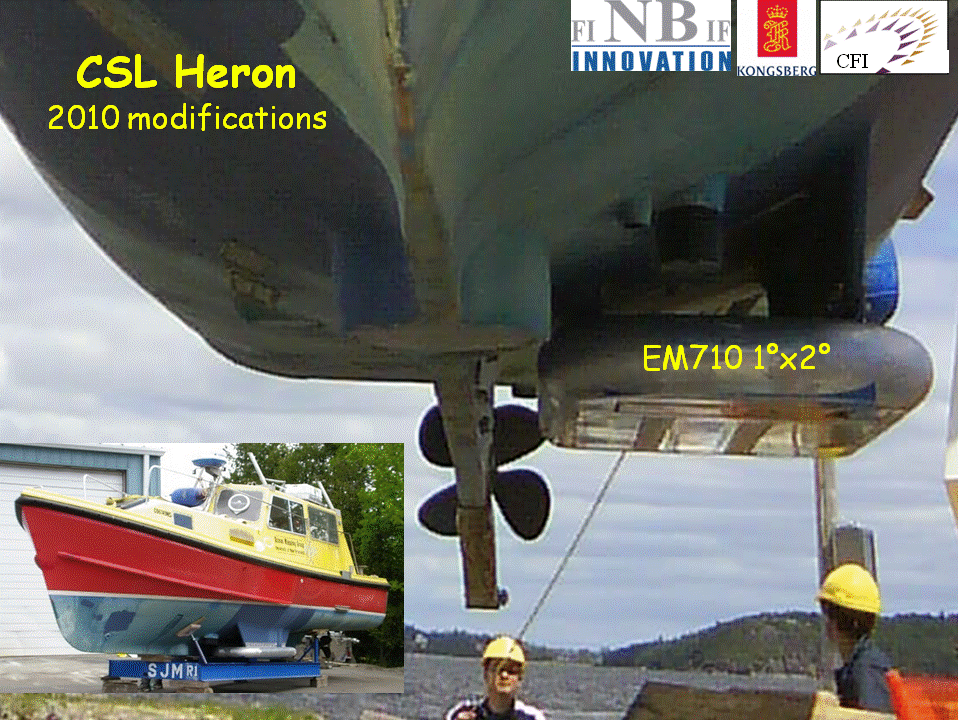

Amundsen and CCGS Henry Larsen). In 2010 she was upgraded to a
newer suite of instrumentation centred around a 70-100 kHz multi-sector
multibeam sonar (EM710). It is this configuration that
has been used for the Squamish prodelta experiment.
EM710 is ideal for imaging not just the seabed over the range of
depths (0-285m), but has sufficient signal to noise left at those slant
ranges to provide useful water column imagery of the scattering field.
In addition to the mapped seabed morphologic change, the
identification of gas plumes and active water body intrusions, using
the water column imagery was an unexpected highlight of the experiment.

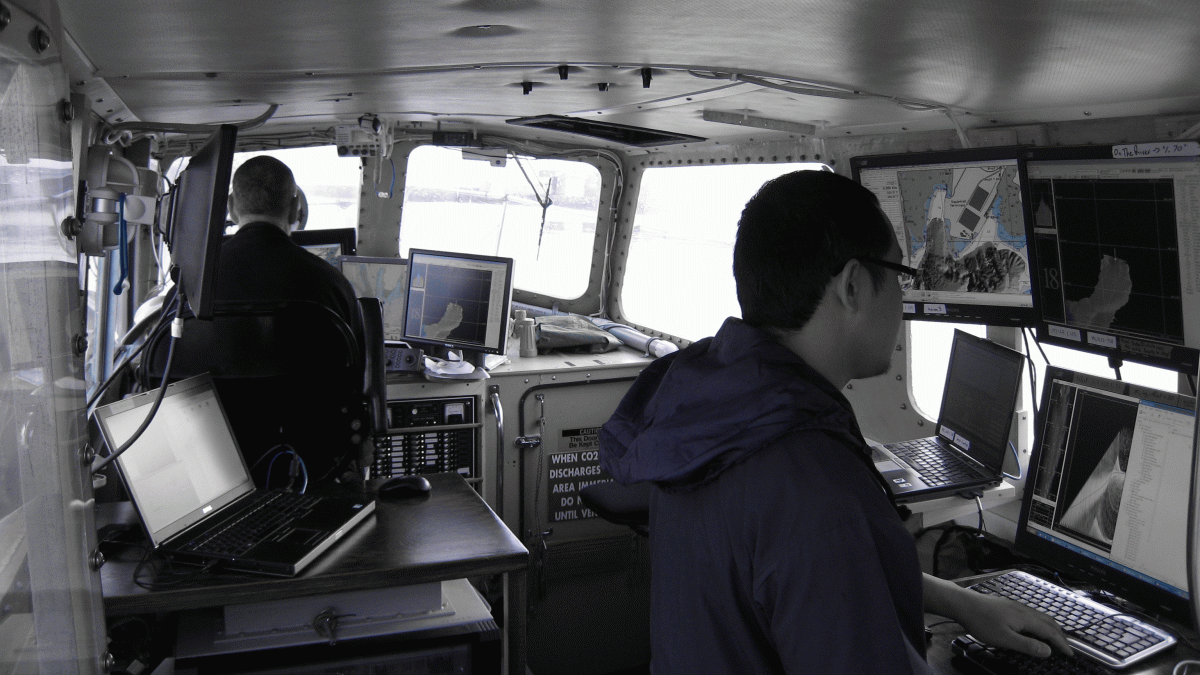

The Heron is both a research platform and a training platform for
graduate students. The Squamish prodelta program forms the basis for 2
PhD and 3 MScEng theses. She can take a full complement of 6 persons,
athough for typical survey operations, the skipper and two surveyors
are the usual load. From the Heron we can also undertake oceanographic
surveys (see below) and deploy current meters.

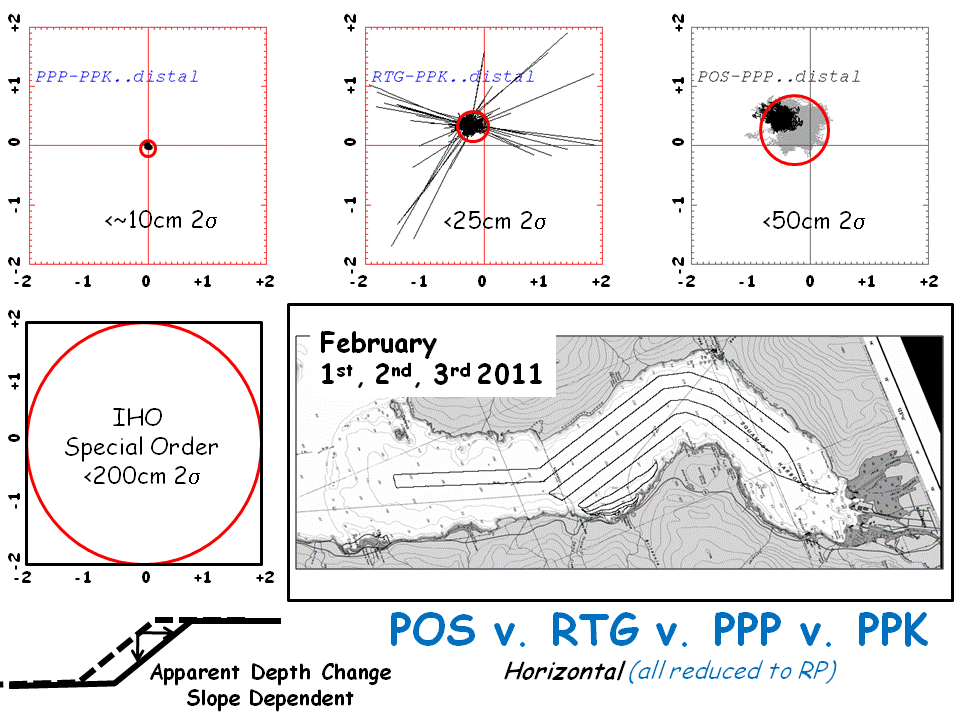

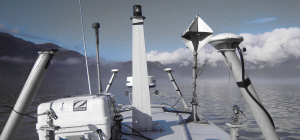

depends on the
component uncertainties in the integrated mapping system. As part of
this, the horizontal and
Flavours of GPS including: Inertially smoothed DGPS, RTG, PPP and PPK
have been explored. These provide horizontal positioning accuracies in
the range of metres, decimetres and centimetres. Vertically, the PPP
and especially the PPK solutions allow us a few or a single decimetre
level uncertainty (95%).
Such levels of achievable 3D positioning accuracy have to be combined
with a matching level of offset and alignment surveys to integrate the
antenna solutions with the sonar-relative angles and ranges.
Any horizontal positioning biases, will show up on the steep delta
front as false apparent depth changes when one survey is compared to
another. Thus one of the geomatics research aims of this program, is to
minimise these 3D positioning errors so that the natural change in the
morphology can be best observed.
water body represents an area of highly
oceanography. The mixing of salt and fresh water,
modulated by the
basin and delta-top morphology, the tides and the variable river
discharge result in rapid spatial variations in sound speed (a function
of temperature and salinity). The sounds speed variability in turn,
affects the accuracy of the range and angles derived from the sonar

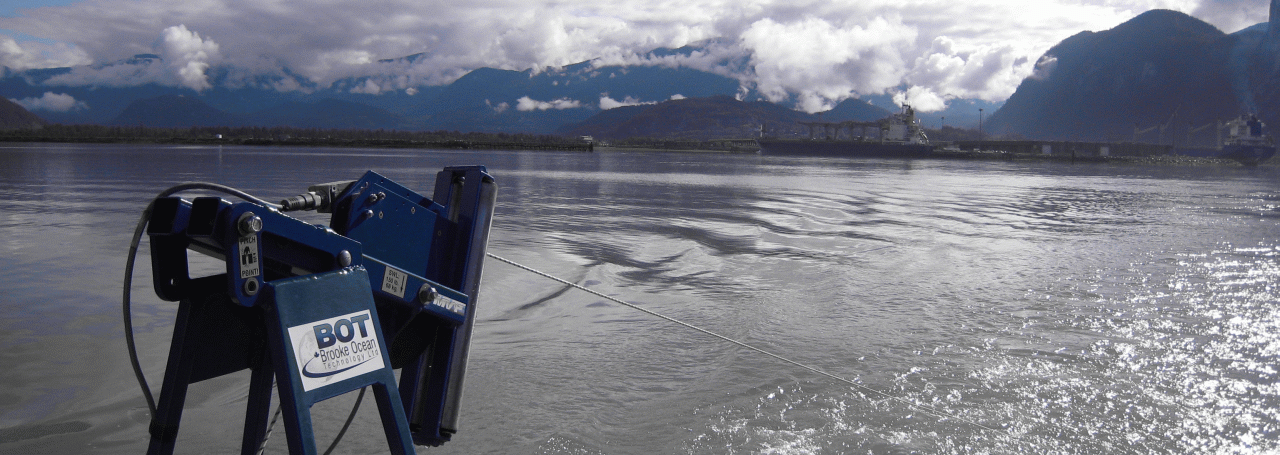

To address this, a rapidly cycling, towed CTD sensor was deployed (a
Brooke Ocean MVP) which, through the use of longitudinal
sections, allowed us to look at the the temporal and spatial

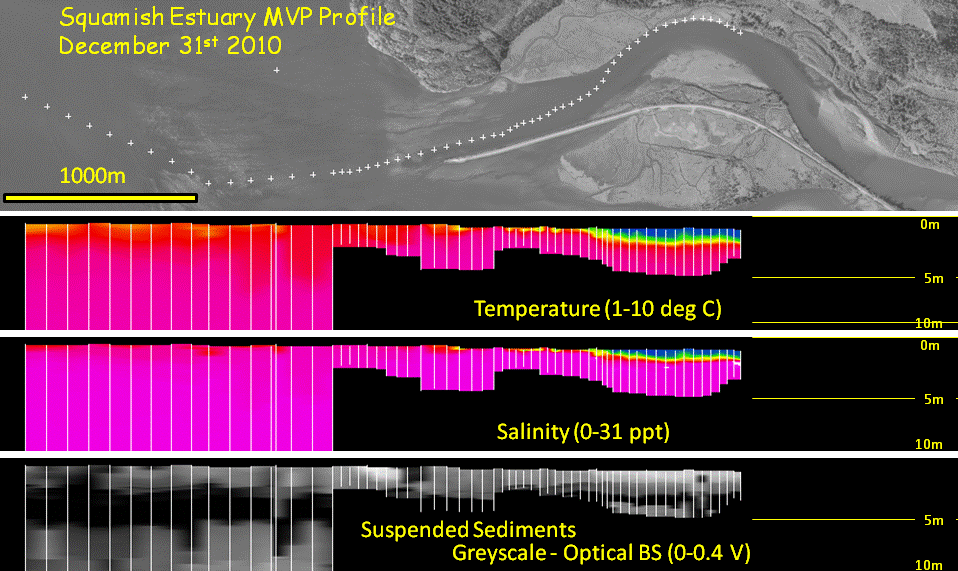

variability of the estuarine mixing around the delta mouth.The figure
to the right illustrates a temperature, salinity and optical
backscatter section along the Squamish river estuary, extending about
2000m upstream from the lip of the delta. These sections were obtained
twice weekly. Additional sections through the river plume and along the
length of the fjord to Porteau Cove were obtain on a similar sampling

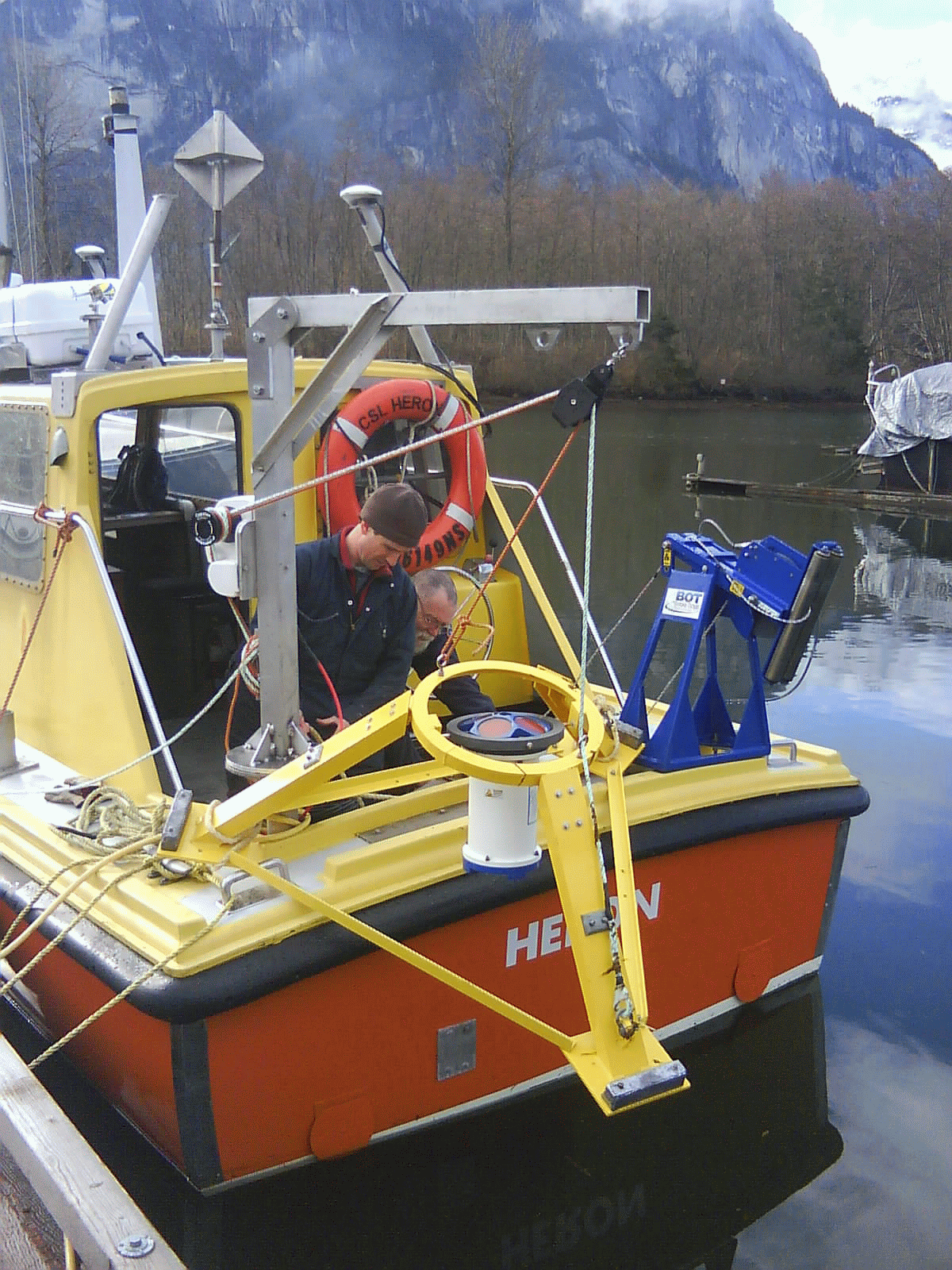

Bottom Mounted ADCP Observations.
directly detect the presence of turbidity current activity, an acoustic
doppler current profiler (ADCP) was deployed in 150m+
the terminus of the northern
channel. The aim was to record current and suspended sediment surges
that might result from the slump events events apparent from the
morphological change seen upslope.
Twenty discrete turbidity current events were indeed detected. They
were characterized by peak velocities of up to 1.5m/s (more typically
0.5m/s) for a duration of over an hour. The turbid plumes were seen to
ascend up to 40m above the seabed and be detectable for more than 8
hours after the nose of the event passed..

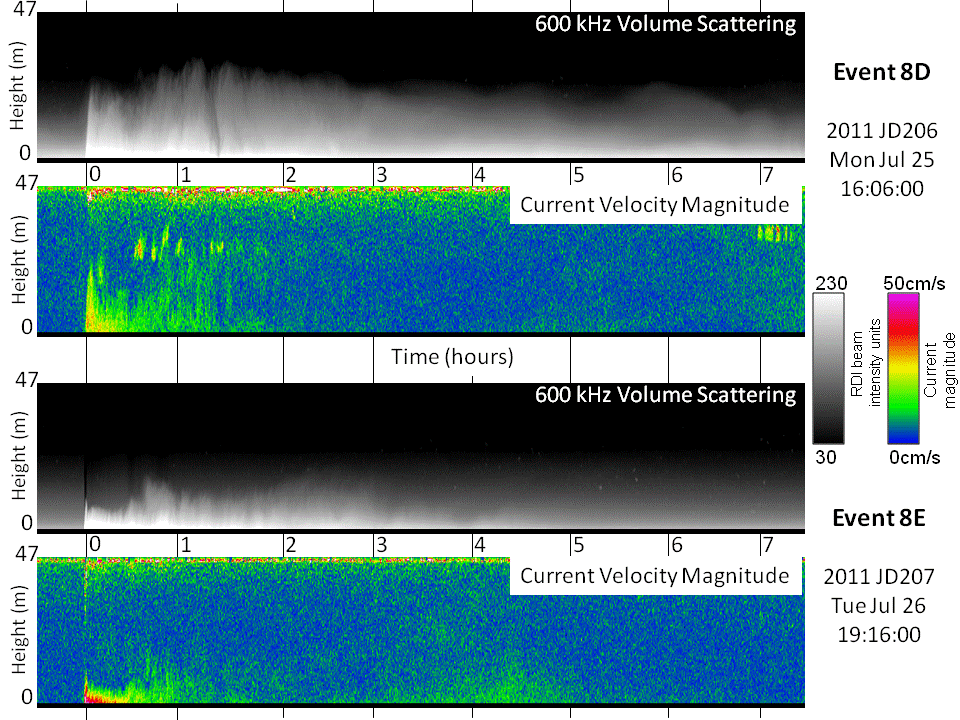

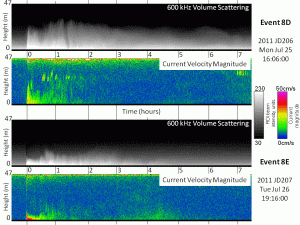

Two example events are illustrated in the figure to the right.

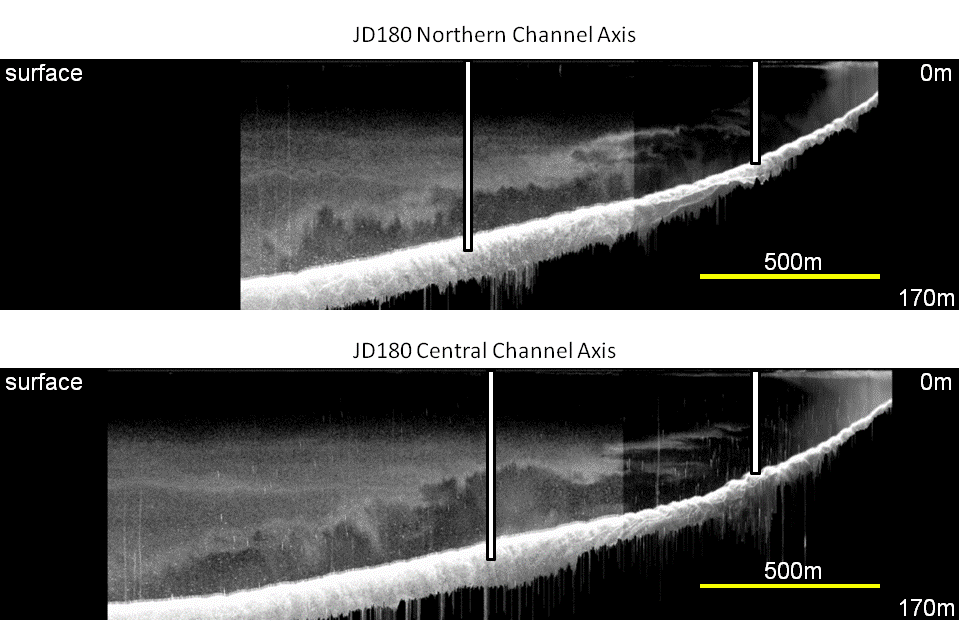

Water Column Imaging of Hyperpycnal

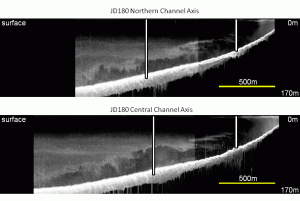

Using multibeam acoustic imaging of the volume scattering in the water
mass we are able to detect whether the deep scattering layer, developed
in the fjord, was perturbed by intrusive events. Every day, transects
were run along the three channel axes. The hope was that intrusive
activity could be detected and correlated with the observed morphologic
change and the turbidity current events. Several intrusions were indeed
detected. Unless, however, the intrusion was still taking place at the
time of the survey (usually a 45 minute window), there may be no
evidence of the events that caused the morphologic change within the 24
hour window between the previous and this survey.
An optical backscatter probe was lowered into the channel axes, and
evidence of enhanced suspended sediment levels were detected,
correlated with intrusions, evidenced by the zooplankton displacement.
At this time, the optical backscatter probe is not calibrated, so exact
suspended sediment loads are not yet known...
- Hughes Clarke, J.E., S. Brucker, J. Muggah, I. Church, D.
Cartwright, P. Kuus, T. Hamilton, D. Pratomo and B. Eisan, 2012, The
Squamish ProDelta: Monitoring Active Landslides and Turbidity
Currents: Canadian Hydrographic
Conference 2012, Proceedings, 15pp.
- Hughes Clarke, J.E., S. Brucker, J. Muggah, T. Hamilton, D.
Cartwright, I. Church and P. Kuus, 2012, Temporal
spatial extent of mass wasting events on the Squamish prodelta slope:
Landslides and Engineered Slopes:
Protecting Society through Improved Understanding - Eberhardt et al.
(eds) , Taylor and Francis Group, ISBN 978-0-415-62123-6,
- Hughes Clarke, J.E., 2012, Optimal
use of multibeam technology in
the study of shelf morphodynamics: International
Publication # 44,
Sediments, Morphology and Sedimentary Processes on Continental Shelves:
Advances in technologies, research and applications, Wiley, ISBN
978-1-4443-5082-1, p. 1-28.
- John E. Hughes Clarke, Steve Brucker, James Muggah, Ian Church,
Doug Cartwright, 2011, The
of prodeltaic sedimentation and integrated system accuracy , U.S. Hydrographic Conference 2011. Proceedings,
- Hughes Clarke, J.E., Brucker, S., Hill, P. and Conway, K., 2009, Monitoring
and Arctic regions: International
mapping for Geohazard Assessment, Editors: Chiocci F. L.,
Ridente D., Casalbore D., Bosman A, Rendiconti
Geologica Italiana, Vol. 7, part 4, p.147-150
- Steve Brucker, John E. Hughes Clarke, Jonathan Beaudoin, Craig
Lessels, Kal Czotter, Ralph Loschiavo, Kashka Iwanowska and Phil Hill,
Squamish Delta, Howe Sound, British Columbia United States Hydrographic Conference 2007.
http://thsoa.org/us07papers.htm, 16 pp.
- Gordon Allison - skipper CSL Heron (CCG retired)
- John E. Hughes Clarke
- Steve Brucker
- James Muggah
- Ian Church
- Doug Cartwright
- Travis Hamilton
- Pim Kuus
- Danar Pratomo
- Brad Eisan
